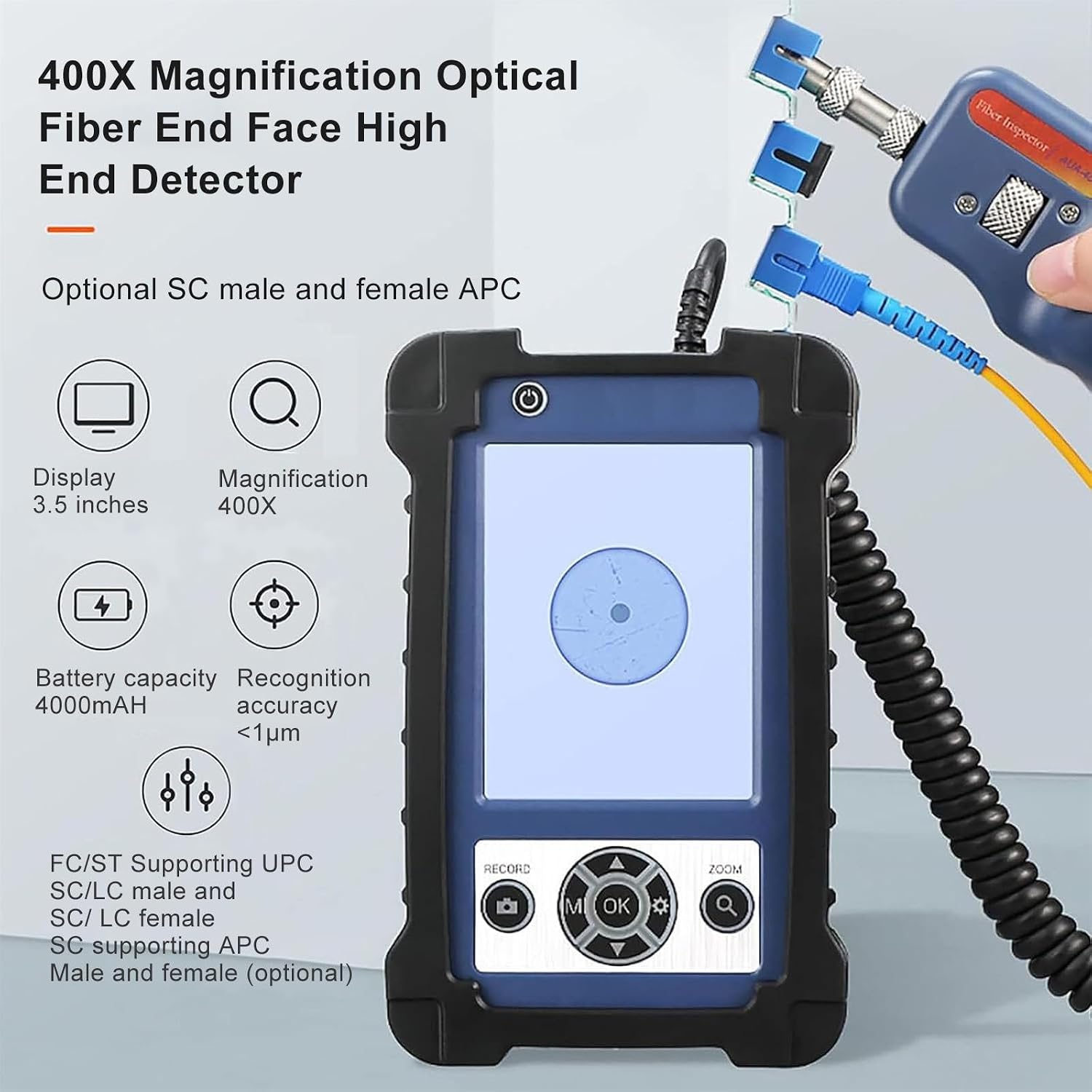

Fiber Optic Inspection Probe Kit, 400X Magnification Fiber Connector Endface Microscope, 3.5 Inch Display Monitor, Network Cable Tester, Micro-Fiber Optic Endface Inspection Camera

Price: £700.99
(as of Jun 24, 2026 00:58:19 UTC – Details)


Fiber optic inspection probe kit is a handheld optical fiber end-face detector launched. With its high-end optical devices and high-resolution cameras, it can Quickly manually focus and detect scratches, dirt, and dust on the fiber end face. Applicable to various scenarios.
Features:
– Less than 1μm resolution, clear imaging.
– USB Port compatible with the PCs and Laptops(Windows), OTDR(
– Compatible FC/SC/ST/LC/SC female connector/LC male connector.
– 4000mAH large capacity lithium power, 20 hours standby.
– Real-time video, support extend t-flashcard, quick check the pollution degree of the female connector and male connector.
– Rotary metal bracket, stable and convenient.
– 400 times magnification, the stain is clearly visible.
– 3.5-inch HD LCD display. 1/3 inch sensor, 300,000 effective pixels.
– A removable Silicone Case reduces the damage by colliding or dropping to a certain extent.
– Small size, one-handed, convenient, and fast.
Product Configuration：
– Model: KIP-600V
– Magnification: 400x
– Resolution (um): surpass 1.0
– Visual range (um): 0.316*0.285
– Size (pm): 235(W)*95(D)*30(H)
– Image sensor: 1/3 480
– Storage temperature: -18℃~35℃
– Mass (kg): 0.11
– Frequency: 25FPS
– LCD screen: 960*240 LCD
– Video output mode: NTSC/PAL
– Playback format: AVI
– Compatible memory card: TF
– Capacity: 8GB
– USB: 1.1/2.0
Product packaging:
– Fiber optic inspection probe kit*1
【400X MAGNIFICATION CLEAR DISPLAY】Inspection Video Probe is equipped with 3.5 inch HD LCD display; the stain is clearly visible and probe with one-way focus control, the fiber optic inspection probe uses excellent sensor to ensure clear display and accurate measurement, with fast response.
【APPLICABLE】Compatible / FC/SC/ST/LC/SC female connector/LC male connector; 1/3 inch sensor; 300,000 effective pixels; The machine adopts micro USB interface, charging standard is 3.7v, charging is more convenient and simple.
【ROTATING BRACKET】Fiber end face inspection probe equipped with 80 degree rotating metal bracket, convenient and stable, helping you easily adjust the viewing angle. Removable silicone case. small and portable package make it easy to ope-rate anywhere and anytime, adapting to the maintenance of the network.
【RECHARGEABLE】The fiber optic microscope has a built-in 4000 mah lithium battery, equipped with a usb charging cable, which can be used at any time. Standby time is up to 20 hours, which is suitable for the needs of workers who go out for a long time.
【REAL TIME RECORDING】Real-time video recording and expansion of TF card, convenient and fast recording of measurement information. Fiber optic inspector support data playback to facilitate inspection and data statistics.The panel design is concise, to be used is simple and practical, and the use is more humanized.
